Flying in FLIR

Notes

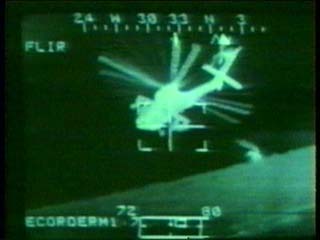

This image shows what the FLIR imagery actually looks like. This is what you will be seeing as the pilot trying to fly the aircraft. Note the airspeed and altitude indicators above the field of regard box. The airspeed is shown as 72 knots, and the altitude is 80 feet above ground level. (This picture shows the TADS gunner video and symbology slaved to the CPG LOS. Thanks to CW2 Andrew Breithaupt for elaborating on this point.)

Notes

This image shows what the FLIR imagery actually looks like. This is what you will be seeing as the pilot trying to fly the aircraft. Note the airspeed and altitude indicators above the field of regard box. The airspeed is shown as 72 knots, and the altitude is 80 feet above ground level. (This picture shows the TADS gunner video and symbology slaved to the CPG LOS. Thanks to CW2 Andrew Breithaupt for elaborating on this point.)
